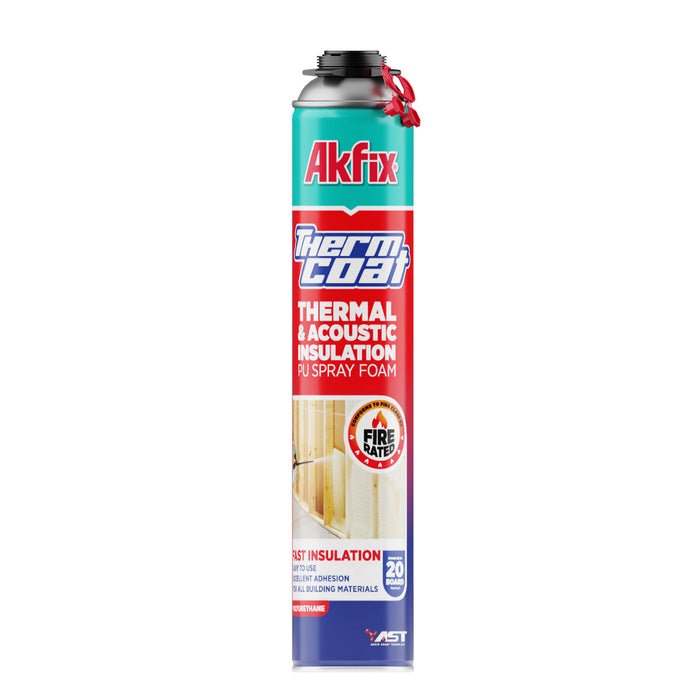

Akfix Thermcoat Thermal & Acoustic Insulation Spray Foam (Closed Cell), Fire Rated

• Quick & Easy Application: Simple to apply with an applicator gun, even on tricky surfaces
• Stops Heat Loss Cold: Eliminates thermal bridges and dew points for better energy efficiency
• Fire Rated for Safety: Certified Class A (ASTM-E84) for minimal flame spread and smoke
• Sticks to Everything: Excellent adhesion to all common building materials
• Insulation That Works: R-value of 5.66 per inch and thermal conductivity of 0.025 W/(m·K)
• High Coverage: Up to 20 board feet per can at 1-inch thickness
• Paint-Friendly Finish: Once cured, it can be painted to match your space
• Eco-Conscious Formula: No ozone-depleting propellants
• Seals Out Moisture: Closed-cell structure resists water and adds structural strength
• Versatile Use Cases: Great for homes, buildings, trailers, boats, and more

• Homes & Buildings: Perfect for insulating roofs, attics, foundations, basements, floors, walls, ceilings, and more (both residential and commercial).
• Tight or Uneven Spaces: Easily insulates balconies, loggias, window and door frames, pipes, tanks, and irregular surfaces that traditional insulation can’t handle.
• Vehicles & Watercraft: Ideal for car bodies, trailers, boats, yachts, and all types of sea vessels (adds insulation, strength, and moisture resistance).

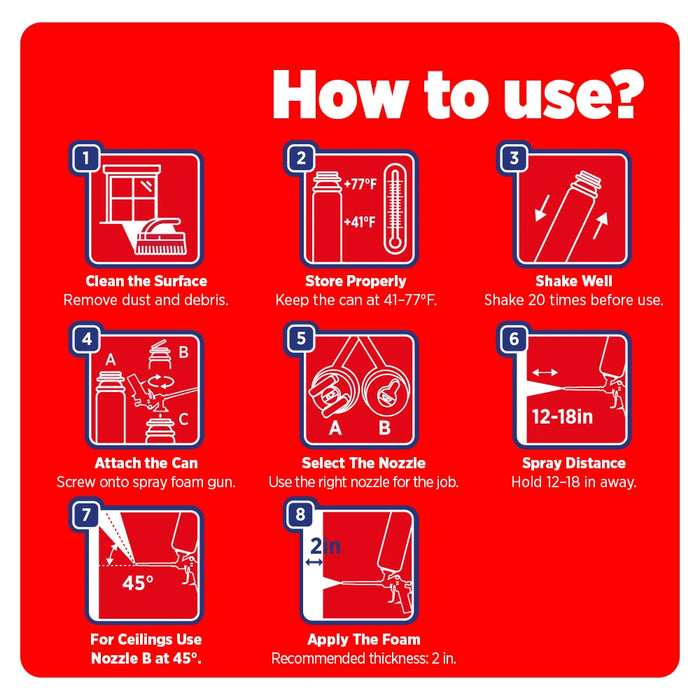

Prep the Can: Before starting, ensure the can is at room temperature (around 68°F / 20°C) for best performance.

Shake Well: Vigorously shake the can for at least 30 seconds to properly mix the contents.

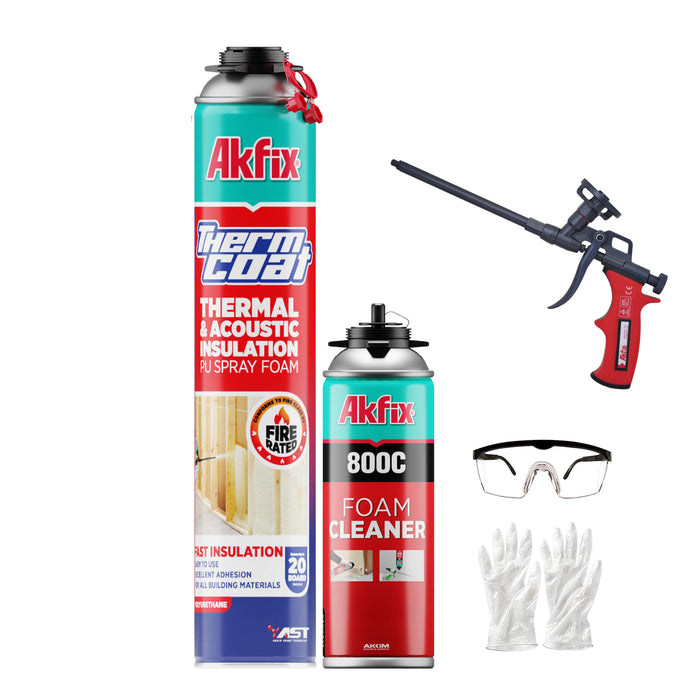

Set Up the Gun:

• Attach the can to the applicator gun securely.
• Fix the appropriate spray nozzle (Nozzle A for vertical surfaces, Nozzle B for ceilings).
• Hold the can upside down while spraying.

Adjust Foam Flow: Use the trigger and the adjustment screw on the back of the gun to control foam output.

Spray Distance:

• For vertical applications, spray from 12–18 inches (30–46 cm).
• For horizontal applications, spray from 6–8 inches (15–20 cm).

Apply in Layers:

• Spray foam in multiple thin layers rather than one thick coat.
• For optimal insulation, apply at least three layers to reach a total thickness of around 2 inches (5 cm).
• Allow each layer to expand and partially cure before applying the next.

Clean Immediately: After use, clean the spray nozzle and applicator gun with foam cleaner to prevent clogging and ensure longevity.

• Type: Polyurethane Prepolymer
• R-Value: 5.66 per inch
• Yield: 20 board feet at 1-inch thickness (Covers up to 20 square feet at 1 inch thick)
• Tack-Free Time: ~4 minutes (ASTM C1620)
• Full Cure Time: 24 hours
• Temp Resistance: -103°F to +239°F (-75°C to +115°C)
• Application Temp: 41°F to 86°F (5°C to 30°C)
• Color: Yellowish
• Curing System: Moisture Cure
